Adelco Digi-Cure +

Adelco Digi-Cure +

The new Adelco Digi-Cure + our updated small, but powerful dryer, delivering superb value and technology for the curing of all inks.

Key features of the Adelco Digi-Cure +

  • Sophisticated digital HDMI Touchscreen Interface with dryer fault diagnosis
  • Integrated In-Feed and Out-Feed Extraction system
  • Integrated Exhaust and Fan on edge of machine to stabilise temperature.
  • Extremely Economical
  • High Pressure airflow for best curing penetration
  • Conveyor belt tracking system
  • Automatic belt speed control in minutes and seconds.

A small drying machine with big dryer features and performance

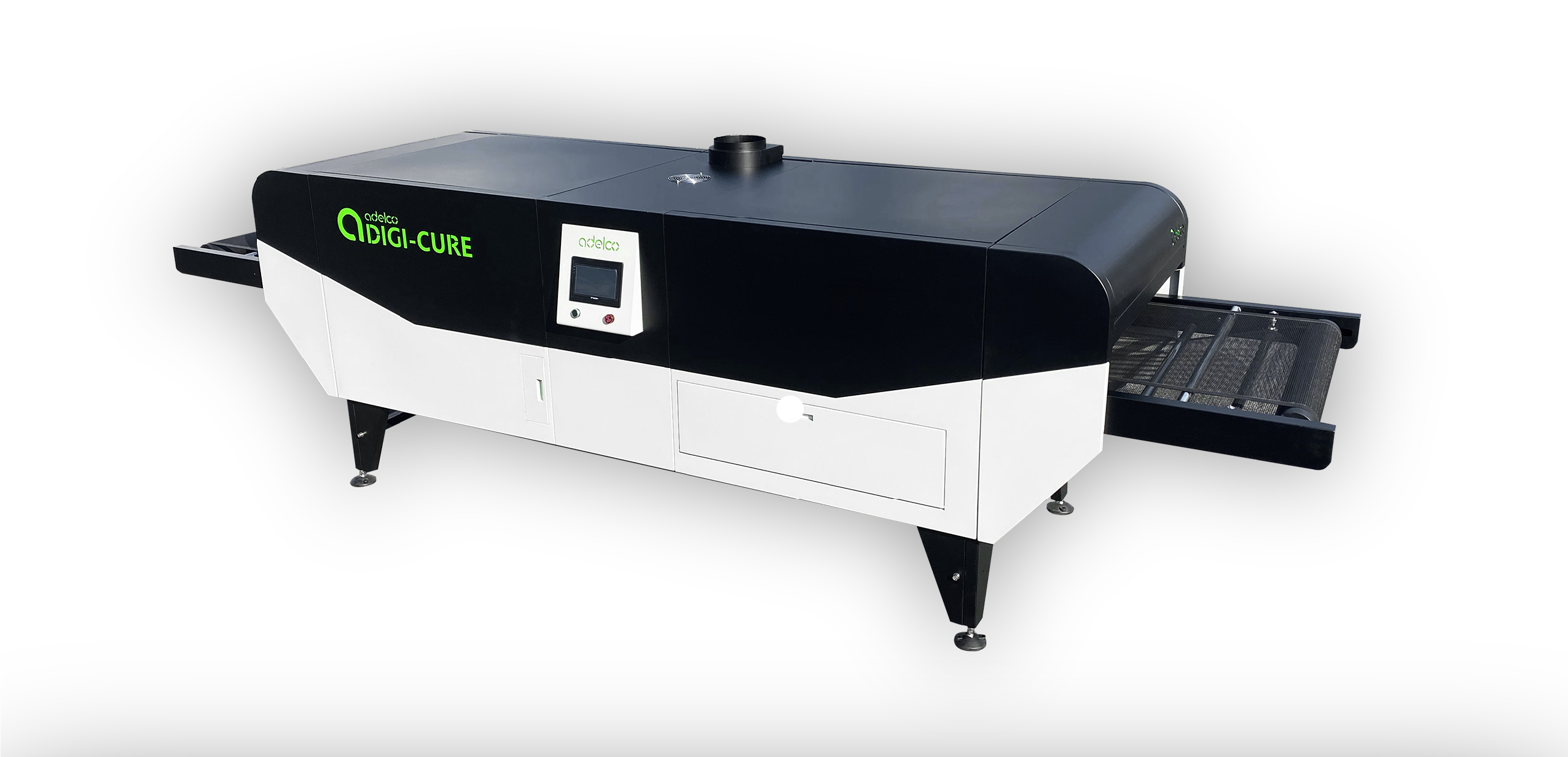

The Adelco Digi-Cure + is an updated version of the much loved and highly regarded, small but mighty Digi-Cure textile conveyor dryer.  This solution is aimed at providing great value with excellent curing ability for all textile ink systems, both Digital and Conventional as well as Transfers.

The Digi-Cure + conveyor dryer is 2.6 meters long with a 90cm in-feed and 90cm out-feed, with a 80cm belt width.

Big performance from a small conveyor dryer

This new version comes with many unique and advanced features that will boost efficiency, conserve fuel and improve the longevity of the print and the dryer.  Maintenance is now effortless, saving money and resources

The Digi-Cure + has twin fans that provide double the airflow compared with its predecessor, offering the highest airflow performance of a small dryer.

A sophisticated touch screen control panel, giving total control over the curing time, temperature and maintenance, as well as dryer fault diagnosis in seconds.

Digi-Cure screen

A new exhaust and drip tray located on the edge of the dryer, enables easy access and cleaning. Infeed and outfeed fume extraction for a cleaner production environment.

Maintenance and accessibility is now effortless with screwless, quick release panels, easy access filters and mesh replacements, saving money and resources.

To find out more about the Adelco Digi-Cure+ Dryer, please download our brochure or contact us.

Adelco keeps up with technology and the temperature keeps constant. Service with Adelco is brilliant, Steve looks after us and is always on hand to help out either on the phone or getting stuck in the machines.

Pally Hayre, Pally, UK

Full features and advantages of the Adelco Digi-Cure+

  • Twice the airflow.
  • New exhaust oil drip tray, located at the edge of the dryer for easy access and cleaning.
  • Integrated heating element monitoring. Notifies on screen if a heating element fails
  • Main isolator position, in an easy to get to location.
  • Quick tool free removable side and top panels, for easy access for maintenance.
  • Slide out Air filter for easy cleaning (No replacement filters required).
  • Conveyor belt tracking system.
  • Built in infeed/outfeed fume extraction system keeps the working environment clean.
  • Sophisticated HMI control panel interface with dryer fault diagnosis and automatic digital belt speed in minutes and seconds.
  • New design easy access heater bank.
  • Exhaust on the edge of the machine to stabilise temperature.

To find out more about the Adelco Digi-Cure+, please download the brochure or contact us.

Model No. DC+80E-3
Electrical Supply 22KW, 3 Phase 220-240V or 380V-415V, 50/60hz
Belt Speed 50 secs > 10 mins
Time from ambient temp to 160В°C (320В°F) Approx 30 mins
Exhaust Diameter 200mm (8")
Belt Width 80cm (32")
Infeed/Outfeed 88.5cm (35")
Oven Length 260cm (102")
Overall Dimensions 115cm (45") W x 127cm (50") H x 260cm (102") L
Adelco Digi-Cure +

In stock in the UK!

We have this item in stock at our UK headquarters for immediate sale. Contact us now to find out more.
