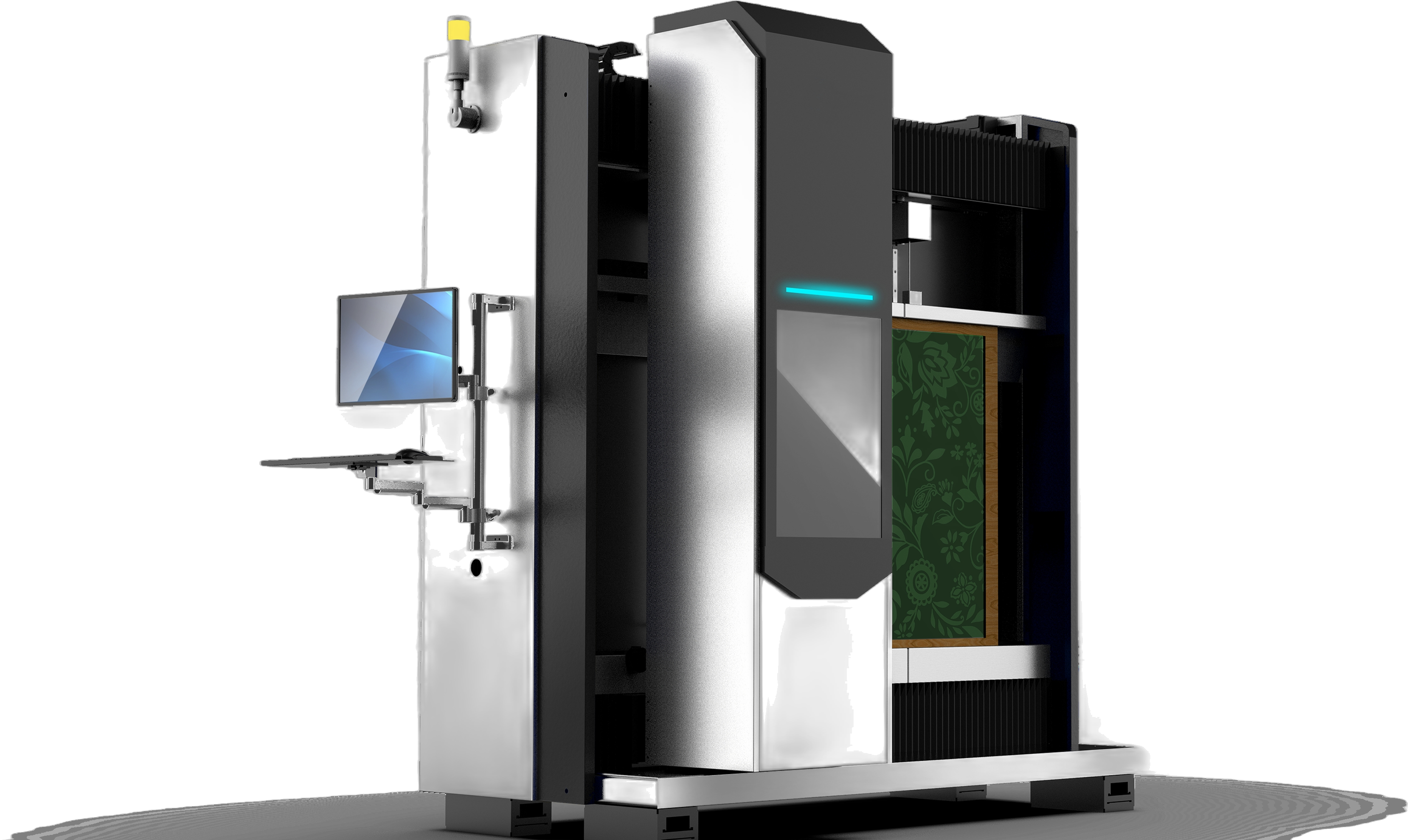

Adelco Laser V
A cutting-edge solution that enables direct computer-to-screen processing, offering exceptional precision and productivity for the textile industry
Key features of the Adelco Laser V
- High Resolution
- Fast and Efficient
- No Consumables Needed
- High Precision and Resolution
- Compatible with Conventional Processes
- DMD Exposure System
- Low Running Costs
- Excellent Laser Screen Piercing Power
Adelco's Vertical Computer to Screen Solution for the textile industry
Our V version of the Laser has all the qualities of the original system with the added bonus of producing a screen on a larger scale. If you are looking for a textile laser printer that produces larger prints in the same level of detail, this is the one for your business. The max screen size is 1080 x 1200 mm, it has an exposure time of 120-240s and a resolution of 1270 DPL.
High Precision Laser Screen Printing
Effortlessly and swiftly achieve a raster of 120LPI and obtain high-quality screen dots through the utilization of an optical resolution of 1270DPI. Alternatively, with an optical resolution of 2540DPI, attain impeccable FM screen dots and high-definition curved lines.
Compatible processes with the conventional process
The CTS directly reads data files and subsequently converts them into images. These images are then transmitted onto screens using laser beams, facilitated by the DMD and lens components
Adelco Laser V — Inline Solution
An optional module that attaches to the Adelco Laser V, connecting it directly into your production line.
- Pin Registration System — automated pin-based screen alignment
- Integrated safety-stop system — instant halt on the safety floor mat
- Space-saving integration — sits in-line with existing equipment rather than standing alone
The Inline Solution is available in two configurations, scaled to how much of the screen production process you want automated and connected.
| Semi-Inline | Full Inline | |
|---|---|---|
| Process stages | Storage rack → Laser V (CTS exposure) → Developing machine → Drying oven | Degreasing → Drying oven → Coating machine → Drying oven → Laser V (CTS exposure) → Developing machine → Drying oven |
| What it covers | Automates exposure through to a finished, developed screen | A complete screen production line, from raw mesh coating through to a finished, developed screen |
| Minimum line footprint | 11,900mm (L) × 5,700mm (W) × 3,100mm (H) | 20,700mm (L) × 6,200mm (W) × 3,100mm (H) |
Both configurations are built to run in a standard yellow safe-light room (22°C ±2°C, 40–60% relative humidity) and interface directly with the Laser V's pin registration system, so the screen stays in precise alignment as it moves between stages. Exact machine dimensions, power and air supply requirements are confirmed at layout stage for your site.
Inline Solution — Pin Registration System in Action
Full Inline Solution — Complete Production Line in Action
| Adelco Laser V | Adelco Laser V - XL | |
|---|---|---|
| Application | Textile only | Textile only |
| Max Screen Size (mm) | 1000 x 1000 mm | 1200 x 1300 mm |
| Min Screen Size (mm) | 400 x 400 mm | 400 x 250 mm |
| Max exposure Size (mm) | 900 x 900 mm | 1100 x 1200 mm |
| Screen frame thickness | 25 - 40 mm | 20 - 50 mm |
| Imaging System | DMD DLP Technology | DMD DLP Technology |
| Emulsion thickness (EOM) | Solvent resistant emulsion 3μm - 150μm | Solvent resistant emulsion 3μm - 150μm |
| Emulsion thickness (EOM) | Water resistant emulsion 3μm - 350μm | Water resistant emulsion 3μm - 350μm |
| Exposure time | 120 - 240s / m2, 350 mesh yellow screen | 120 - 240s / m2, 350 mesh yellow screen |
| Resolution | 1270dpi | 1270dpi / 2540dpi (Optional) |
| Raster | 100LPI | 133LPI |
| File Format | 1_ bit tiff | 1_ bit tiff |
| Focus system | UVLD laser, wavelength 405 5В±nm | UVLD laser, wavelength 405 5В±nm |
| Laser Power | 20W/25W/30W (Optional) | 20W/25W (Optional) |
| Machine size mm | 1750 x 1080 x 1965 mm | 2000 x 1157 x 2247 mm |
| Equipment net weight | 1150 KG | 1450 KG |
| Equipment Conditions | Yellow light room with cleanliness class, temperature 22±2°C. 40 - 70% relative humidity (no condensation) | Yellow light room with cleanliness class, temperature 22±2°C. 40 - 70% relative humidity (no condensation) |
| Connections | Single Phase 220V, 50/60HZ 4KW, Compressor air 0.5 mpa | Single Phase 110V/ 220V, 50/60HZ 4KW, Compressor air 0.5 mpa |
