Pro-Cure SMART

Adelco Product Catalogue Pro-Cure Smart Brochure Make enquiry

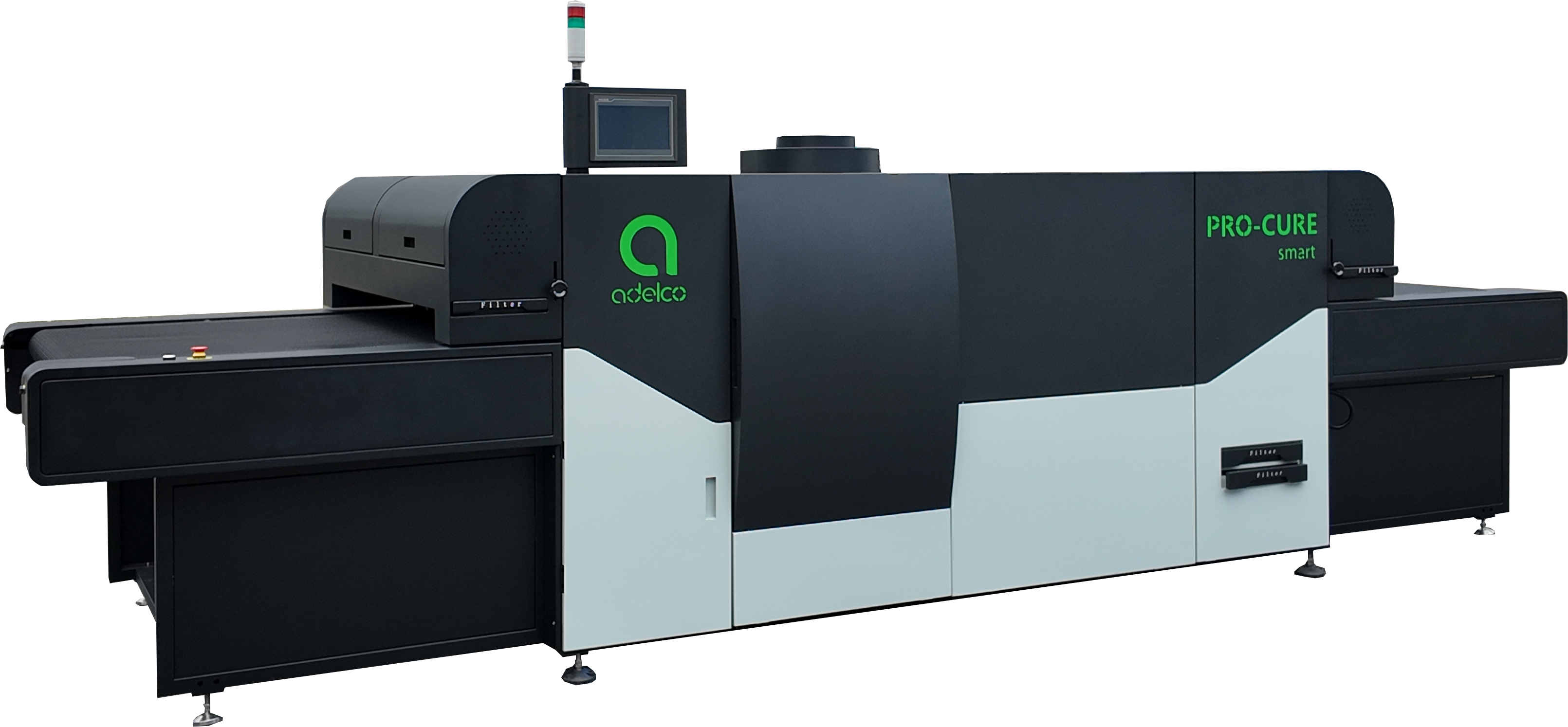

Pro-Cure SMART

An advanced textile conveyor dryer that cures both screen & digital printed garments with five belt widths to choose from to meet every production output.

Adelco Product Catalogue Pro-Cure Smart Brochure Make enquiry

Key features of the Pro-Cure SMART

Five conveyor belt widths available & limitless oven lengths - Modular in design
Gas or Electric textile conveyor dryer
Built in infeed and outfeed fume extraction system
Self-tensioning, self-aligning conveyor belt with rubber covered rollers for unmatched belt life and tracking
Ergonomically positioned and adjustable HDMI touch screen control panel interface.
Reduced energy consumption, low running costs
Easy to clean, service & maintain - fine filtration system
Fast textile curing times for both digital and screen printed garments
Easy to access Curing time and temperature records
Triple insulation with air curtain for the coolest exterior skin.
Split belt options
Vacuum pull down

The most technically advanced and most efficient garment tunnel conveyor dryer on the market

The new Adelco Pro-Cure SMART conveyor dryer range is fully modular in design and available in five belt widths and limitless oven lengths ,making it the perfect option to add additional ovens to the dryer as your business grows. You can customise your dryer to suit your individual curing requirements, for all digital and conventional textile ink systems.

Designed and specified for advanced textile curing, the Pro-Cure SMART garment tunnel dryer has an updated, efficient airflow and exhaust system, incorporating oven feed and exit extraction hoods to provide a cleaner working environment. As well as incorporating many of the popular features found in the Adelco Dual Dryer and our other drying machines.

A Feature Rich Conveyor Dryer

The Adelco Pro-Cure SMART curing machine is a feature-rich conveyor dryer that has a whole host of updated and advanced features as standard.

With many features to ensure, quick and effective maintenance. Including Rapid Dual Air filter cleaning and Infeed/outfeed extraction filter cleaning. Pit stop internal cleaning with quick removable external panels.

There are also some optional extras available to enhance your Pro-Cure dryer further. Give your tunnel a temperature boost at oven entry with the integrated, digitally controlled Quartz pre-heating system. We also offer a VOC exhaust filtration system as an optional extra.

The Adelco Pro-Cure SMART system is available as a gas or electric conveyor dryer and uses a sophisticated touch-screen control panel, ergonomically positioned and adjustable. Easy to use with on-screen temperature mapping, curing time, temperature history record and gas pressure display. With fault finding and service instruction videos, at the touch of the screen.

The Pro-Cure SMART conveyor dryer offers a split-belt model in all oven sizes with two burners, two speeds and two directions, enabling the dryer to cure two independent production lines at the same time. The Adelco Pro-Cure garment tunnel dryer comes with the strongest, toughest and longest lasting conveyor belts on the market. That are self-tensioning, self-aligning with rubber covered rollers for unmatched belt life and tracking.

To find out more about the Adelco Pro-Cure conveyor dryer, please download our brochure or contact us.

Adelco is like a family to me, Adelco Dryers have strong money back – Good return, the problem is that they are too good.
Pally Hayre, Pally, UK

Full features and advantages of the Adelco Pro-Cure SMART

Various belt widths available: Split belt, 1m, 1.2m 1.5m & 1.8m
Unlimited oven lengths available:
Auto-tension, self-tracking rollers
Available as a Gas or Electric conveyor dryer
Easy to service & maintain with quick release panels & filters
Digital automatic conveyor belt speed control
Sophisticated touch-screen digital control panel interface
Vaccum pulldown, providing exceptional stability of delicate fabrics, preventing lifting and flipping over.
Unique Hood extraction, helps prevent fumes escaping, cleaner and fresher environment.
Split belt options. Two burners, two speeds, two directions, two production lines.
Triple insulation with air curtain for the coolest exterior skin.
Integral exhaust adjustment
High Air flow for increased penetration, leading to faster curing times and giving unrivalled heat distribution
Reduced energy consumption for low running costs
Highly efficient, direct Ultra-Violet controlled burner system
Optional VOC exhaust filtration system
Recycles clean filtered air and extracts contaminated air
Optional Quartz pre-heat for temperature boost at oven entry
Removable Lint filters from either side of the dryer, no replacement filters required.
Fast and easy Filtration system that can be cleaned whilst the dryer is running, no replacement filters required.

Drying Solutions

Dryer sizing tool

Enter your target throughput and cure time and we'll recommend the leanest Pro-Cure SMART configuration to hit it — belt width, number of lines and oven length.

Target throughput shirts / hour

Cure / dwell time minutes at temperature

Fuel type

Recommended configuration

PCS100G-3

100cm belt · 1 line · 3m oven

Make enquiry

Power & gas loading

Layout drawing

View full size ↗

Compare configurations

Lines	Belt width	Model	Oven length needed	Throughput delivered

Based on Adelco's standard garment spacing of 2 garments per metre of belt, per line, and oven modules available in whole-metre lengths from 3m to 12m. PCS120 can run either 1 wide-spaced line or 2 lines and is shown where relevant as a compact alternative. Power and gas loading figures are Adelco's published dryer specifications by belt width; running-consumption averages are shown where published for the recommended oven length. Figures are indicative — confirm exact specification with Adelco before ordering.

Take a closer look.

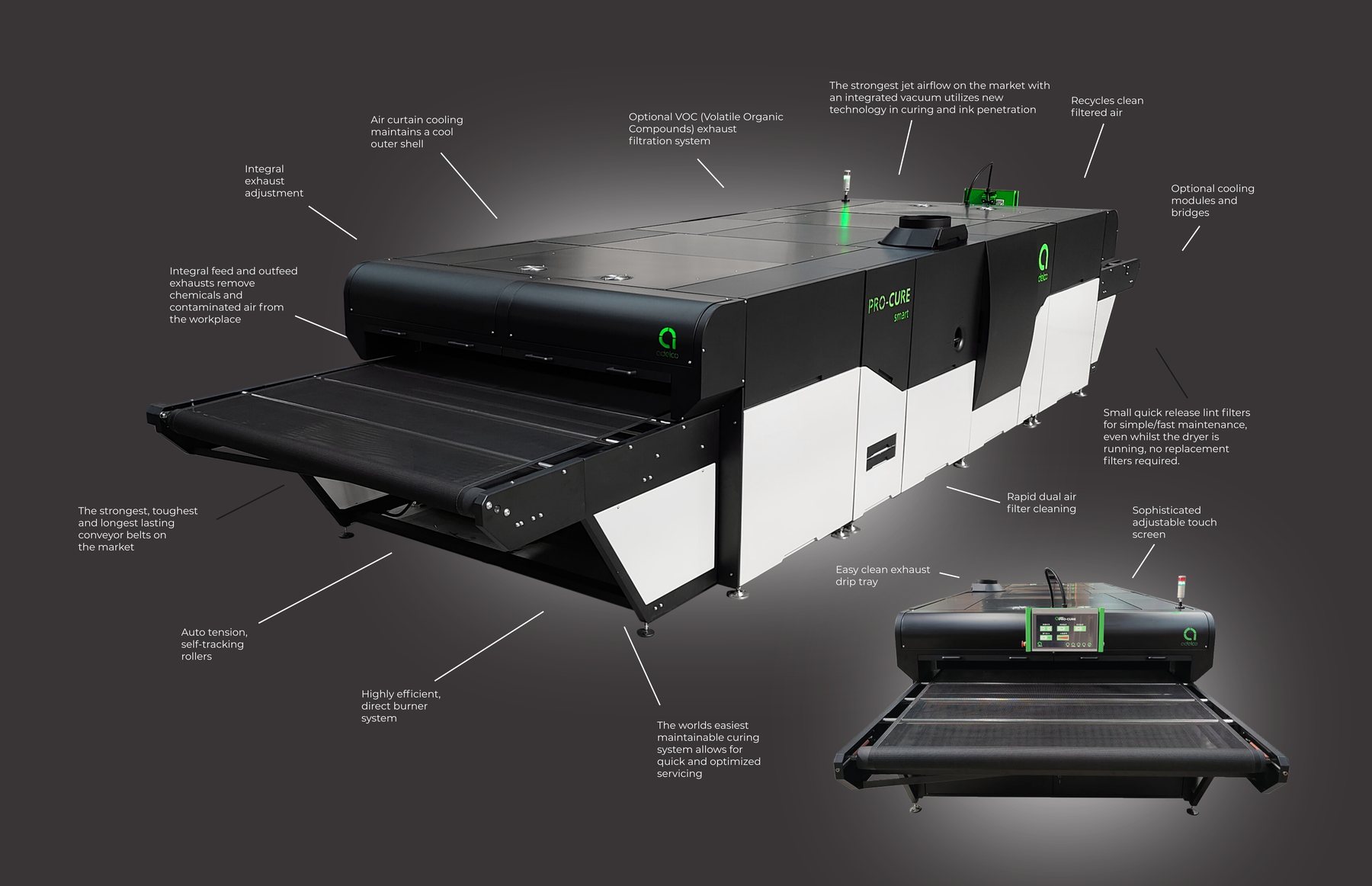

Pro-Cure SMART annotated feature overview

Modular oven, high-output curing and a footprint you can plan around. One frame, one belt, one machine — scaled from a 1-line PCS100 to a 3-line PCS180.

The strongest jet airflow on the market, with an integrated vacuum for new levels of curing and ink penetration. Optional VOC exhaust filtration recycles clean, filtered air back into the workspace.

Pressure adjustment and an emergency stop sit right on the panel. Small, quick-release lint filters mean fast maintenance — even while the dryer is running, with no replacement filters required.

The strongest, toughest and longest-lasting conveyor belts on the market, with auto-tension, self-tracking rollers to keep garments running true, line after line.

Integral exhaust adjustment and feed/outfeed extraction remove chemicals and contaminated air from the workplace. Solid panel construction throughout, badged and built by Adelco.

Vacuum pull-down	Vacuum pull down that provides exceptional stability of delicate fabrics preventing lifting/flipping over
Air Flow	Even higher air flow through garment for increased penetration leading to faster curing times and wash fastness
Touchscreen	10.2" touchscreen interface design easier to navigate and reacts faster
Electrical Supply	3 Phase, 50/60HZ / 200-220V & 380-415V
Natural Gas Pressure	10" W.G. / 25m bar
BTU Required	125,000 - 225,000 (depending on the size of dryer)
Time from ambient temp to 160°C (320°F)	Approximately 8 - 15 mins (depending on size of dryer)
