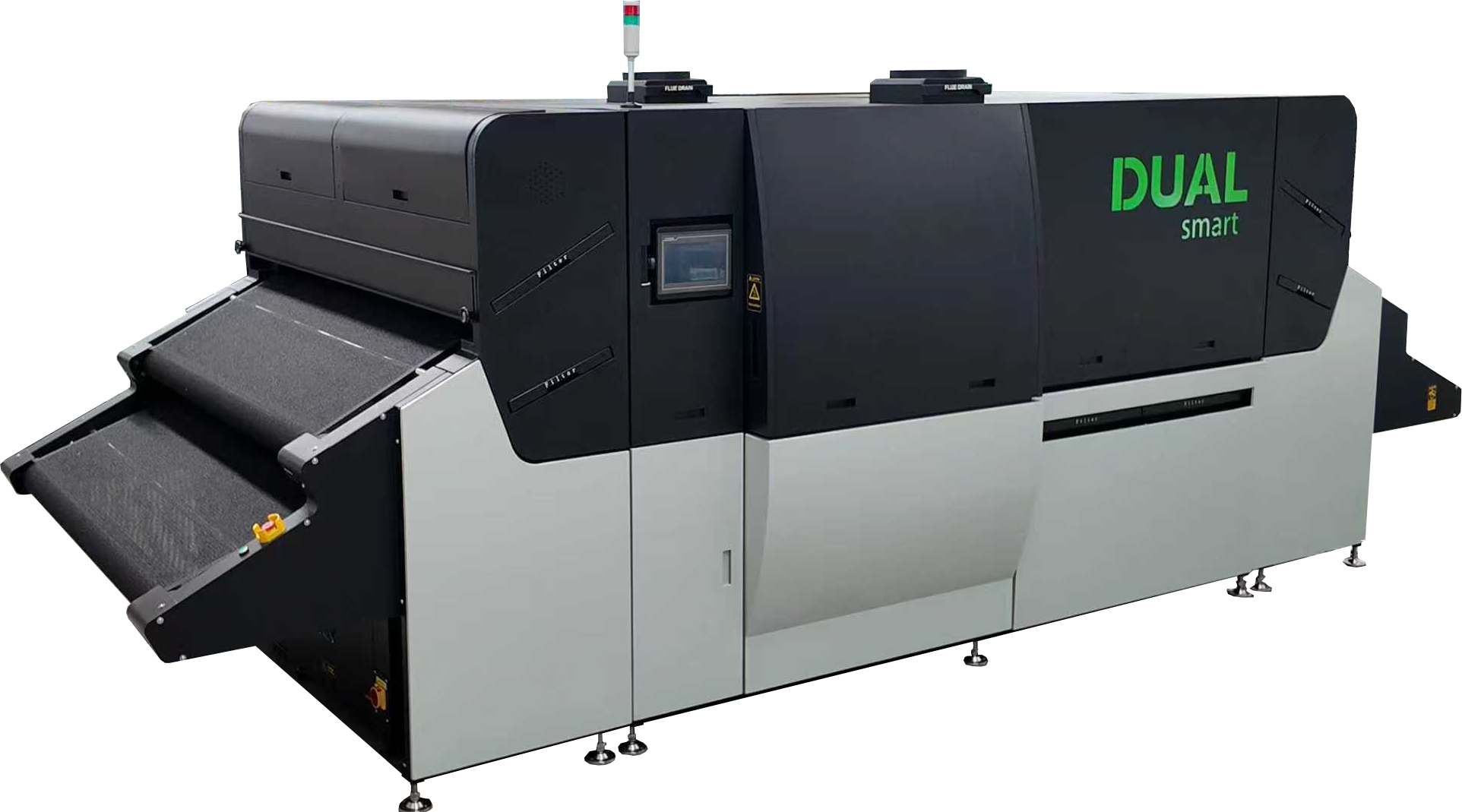

Dual Smart

DUAL SMART

The world’s highest production and energy efficient dual conveyor dryer for screen & digital printing curing.

Key features of the DUAL SMART

  • Two conveyor dryers in a single footprint
  • Modular 3 meter and 4 meter oven lengths
  • Digital touchscreen Interface
  • On screen Temperature mapping (via optional temp mapping device). & Fault finding and service instruction videos.
  • Built in infeed/outfeed fume extraction system.
  • Easy to remove, tool free external panels.
  • Independent burners, airflow and temperature control over each conveyor level
  • Self-tensioning, self-aligning conveyor belts.
  • Rubber Covered Rollers enabling Nonslip conveyor.
  • Integrated vacuum hold down

The world's highest production and energy efficient textile drying machine.

The Dual Smart dryer is the most technically advanced dryer on the market, curing digital inks in high volumes with such a small footprint.  With ingenious features that will increase print quality for all textile ink systems and fabrics including transfers.

The Dual Smart is a double belt conveyor dryer with separate heat chambers, airflow and exhaust systems for the top and bottom conveyor belts.

Two dryers, one footprint.

The new Dual Smart reduces energy usage and downtime and is more intuitive with the printer.

The Adelco Dual Smart has a unique built-in extraction system on the infeed and outfeed for a cleaner working environment together with independent exhaust extraction from each conveyor to maximize the curing efficiency for heavily water-laden prints in both digital and conventional printing requirements.

Independent Burners

These independent burners give the flexibility to run two completely separate print runs, be it screen or digital, at the same time.  Very much like running two dryers side by side, but saving you space and time.

Ergonomically Position & Fully Adjustable HMI Control Interface

With an updated HMI control interface that is fully adjustable, and retractable for easy loading access.

This control panel is the gateway to a host of useful information, including:

  • Curing time and temperature history report.
  • On screen temperature mapping (via optional temp mapping device).
  • On screen fault finding and service instruction videos.

Belts & Rollers

The Dual Smart comes with the most durable and strongest belts on the market. They are also self-tensioning and self-aligning, making this one of the most reliable conveyor belts.

Our ground rubber crowned conveyor rollers ensures reliable belt tracking, prevent slipping & prolongs conveyor life.

Our original Dual dryer exceeded industry expectations and was revered by printers around the globe. We continue to push the boundaries and strive to enhance and develop the technology and features on the Dual.

Adelco continue to use the highest quality components, concentrating on high airflow and efficient exhaust systems whilst adding in practical and ingenious solutions for effortless maintenance.  The result is the highest production dryer that leads the industry in terms of technical innovation, build quality, and low operating costs has been developed.

Mark Smith, Managing Director, Adelco

Full features and advantages of the Adelco Dual Smart

  • Modular 3 meter and 4 meter oven lengths
  • On Screen Gas Pressure Display
  • Self-tensioning, self-aligning conveyor belts.
  • Ergonomically position control panel interface, retractable for easy loading access.
  • Easy Access Air filter cleaning.
  • Easy Access Infeed and outfeed extraction filter cleaning
  • Exhaust residue trap.
  • Independent burners and airflow for each belt.
  • Updated quick access UV flame detection system.
  • Rubber Covered Rollers enabling Nonslip conveyor.
  • Built in infeed/outfeed fume extraction system.
  • Curing time and temperature history report.
  • On screen Temperature mapping (via optional temp mapping device).
  • On screen Fault finding and service instruction videos.
  • Pit stop internal cleaning.
  • Easy to remove, tool free external panels.
Touch screen 15" HDMI Ergonomically position control panel interface, retractable for easy loading access
Electrical supply 3 Phase 220V/380V/415V
Maximum electrical consumption 7KW
Maximum BTU required 250,000 btu / 7 meters cubed per hour (the heat capacity of our burners exceed the maximum supply used to ensure the most efficient and effective utilisation of heat)
Average BTU Consumption 117,000 btu / 3.3 meters cubed per hour (calculated with a full belt of printed shirts, in production)
Time from ambient temp to 160°C (320°F) Approximately 15 minutes
Production - Kornit Print (Black Shirts) @ 5 mins - 430 per hour
Production - Screen Print @ 1 min 2160 per hour
Max Airflow 8,500 CFM Air Speed: 26 m/s RPM: 1230
Exhaust Diameter (12”BSP)300m
